JSW Vacuum laminating+Flat pressing MVLP500/600-IIW

JSW Vacuum leveling machine MVLP500/600-IIW

Product Use

The products are widely used in IC substrates, glass substrates, semiconductors and other industries, and the surface flatness of the products can reach a higher level through vacuum and flattening

Product advantages

1. Four languages are available: Japanese, English, Chinese, and Korean

2. Through segmented precision processes, continuous automated operations, and the synergy of carrier films, we enhance production efficiency while strengthening control over product quality.

3. The hot-pressing leveling steel plate features a mirror-finish surface. For its flatness, the test shows a maximum deviation of ≤10μm. For substrates with a thickness of 0.1mm–0.6mm and a step difference of 18μm, when the dry film ink thickness is 30μm, the ink thickness variation remains ≤5μm.

4. High-precision embeddability and high-precision flatness.

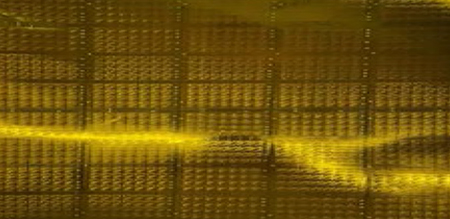

未经处理表面效果

Unetreated Surface Effect

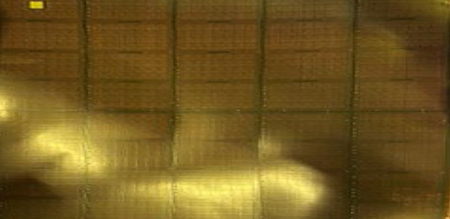

整平后效果

After Leveling Effect

Key parameters
1st Stage
Parameter Name Value
Forming Temperature Max 180℃
Forming Pressure Max 1.0Mpa
Vacuum Degree < 4hPa/15sec
2nd Stage
Forming Pressure Max 2.0Mpa
Forming Temperature Max 150℃
Forming Size 520×620mm
Sheet Flatness Deviation ≤15μm
Conveying Speed 60~130mm/sec
Conveying Accuracy ±1mm
Product Category PCB board Carrier board Wafers
Icon


Features The line width and linespadng are less than2um/12um line width. The line width and line spacing are narrow. The ink thickness uniformity is high. The wafers are denseandhave alarge heightdifference.
