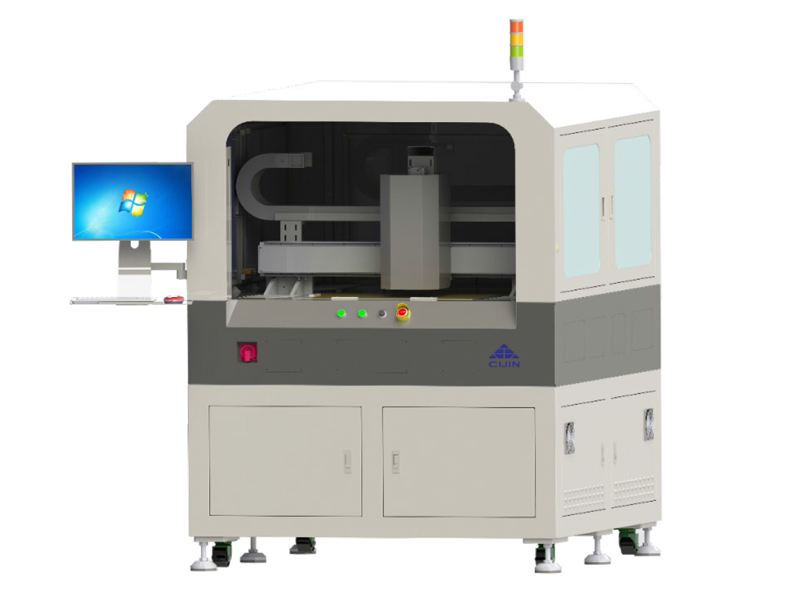

Mainly used for measuring line width/line spacing/line width up and down/circle/solder pad/PAD/etc. within the camera field of view after developing and etching the inner or outer layer of PCB board

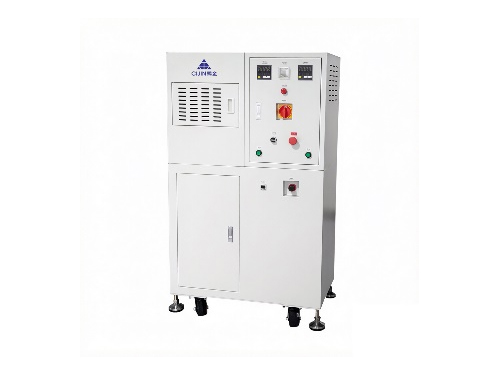

Focused on testing the flowability of semi cured sheets and resins in the copper-clad laminate and circuit board industries. By using pneumatic pressurization, electric heating wire heating, temperature controller temperature control, timer timing, etc., the sample can flow under high temperature and high pressure, thereby measuring its flowability.

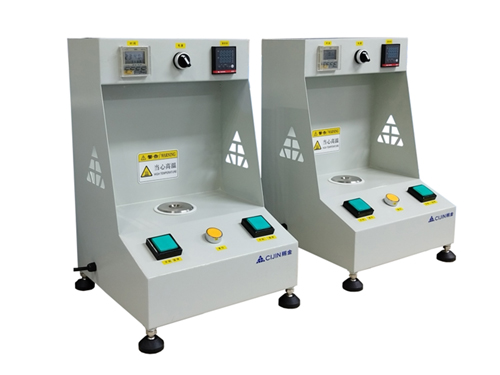

1. Use large square buttons for quick pressing. 2. The left and right symmetrical button design has the same function and can simultaneously meet the requirements of left hand pressing right hand stirring and right hand pressing left hand stirring.

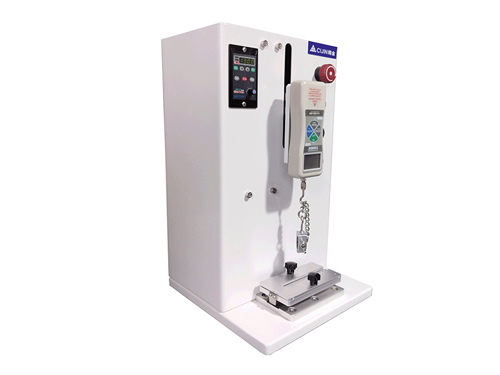

​The peel strength tester independently developed by Cijin is mainly used in the copper-clad laminates and printed circuit board industry to measure the normal and thermal shock resistance of copper foil on rigid and flexible boards,

By using infrared lamp heating technology, the semi cured sheet at the cutting edge can be softened but not cured in a very short time for cutting; A neat and flat blade without glass fiber filaments can reduce dust generation by 90%.
