The main components of an automatic grinder are a visual sampling machine, a UV curing machine, and an automatic grinder;
Automatic Grinding Machine CJ-AYM-08D
project | Main parameters |
Device dimensions | L2845mm*W1705mm*H2165mm |
Equipment weight | About 1300KG |
Machine material | SUS304 stainless steel |
Power parameters | 220V 50HZ |
Gas source requirements | 0.2-0.8 Mpa |
Equipment power | 5KW |
career direction | Left in, right out |
Drive components | Servo motor+cylinder |
Control method | Computer+PLC |
Product Transfer | Tray+suction cup+gripper |
Optical detection method | Fully automatic capture+manual intervention |
Optical detection accuracy | ≤0.01MM |
Grinding control process | Rough grinding+fine grinding+fine grinding+polishing |
Grinding disc size | 8 inches |
Grinding accuracy | ≤0.02MM |
safety protection | Shield protection+grating protection |

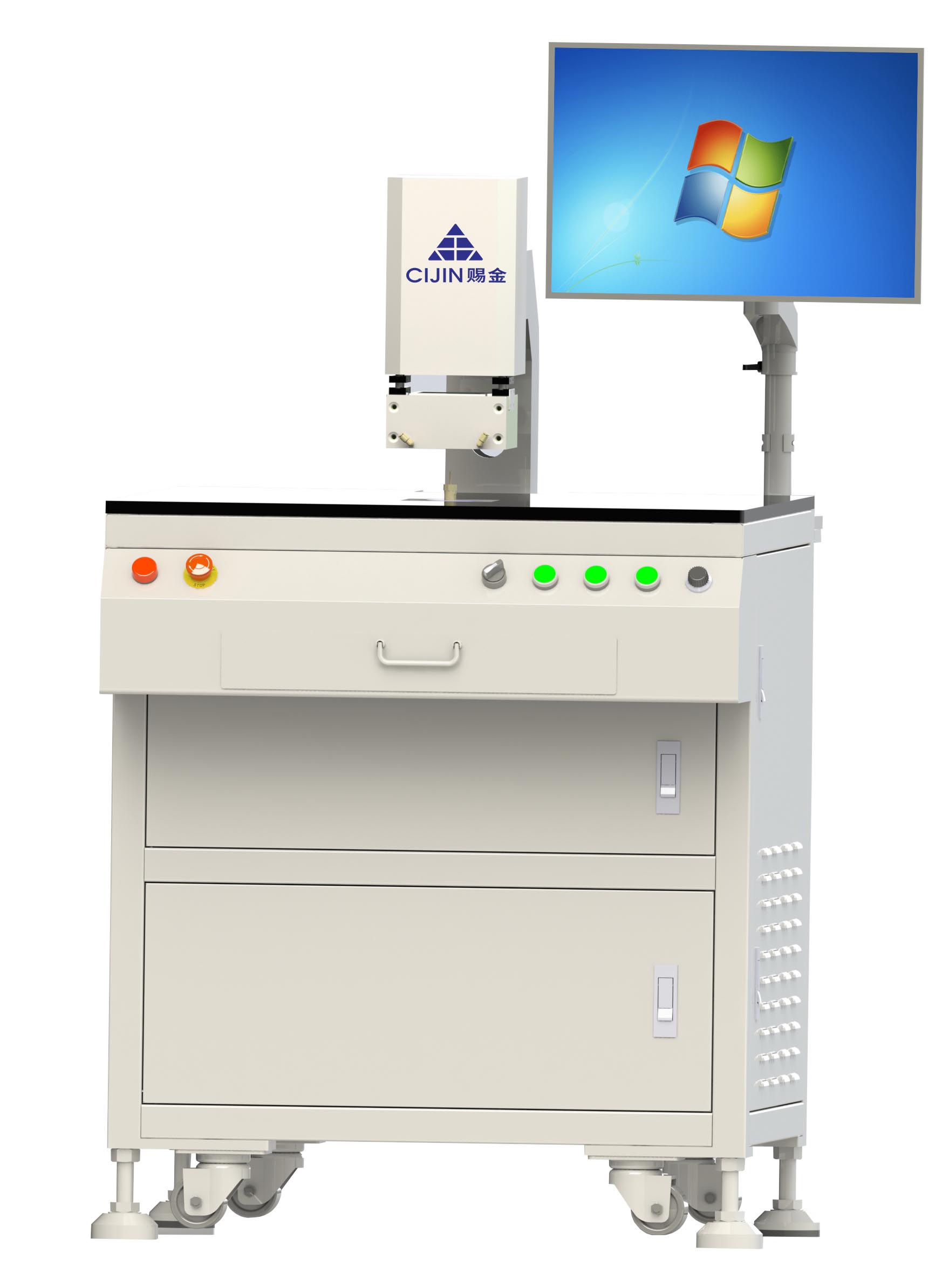

Visual metallographic sampling machine
--CJM-51
|
Product Name |
Visual metallographic sampling machine |
|
Model |
CJM-51 |
|
Installation size |
750 * 800 * 1350 in length, width, and height |
|
Electrical parameters |
AC220v 50Hz |
|
compressed air |
5-8kg/cm3 |
|
Maximum cutting speed |
300mm/min |
|
Maximum Roar Depth |
400mm |
|
repeatability accuracy |
0.2mm |
|
Maximum sampling size |
50*50mm |
|
Maximum board size |
1200*700 |
|
Minimum board size |
80*80mm |
|
camera parameters |
1.3 million pixel CCD network port, color |
|
Effective field of view of camera |
75*75mm |
|
magnification |
3-5 times |

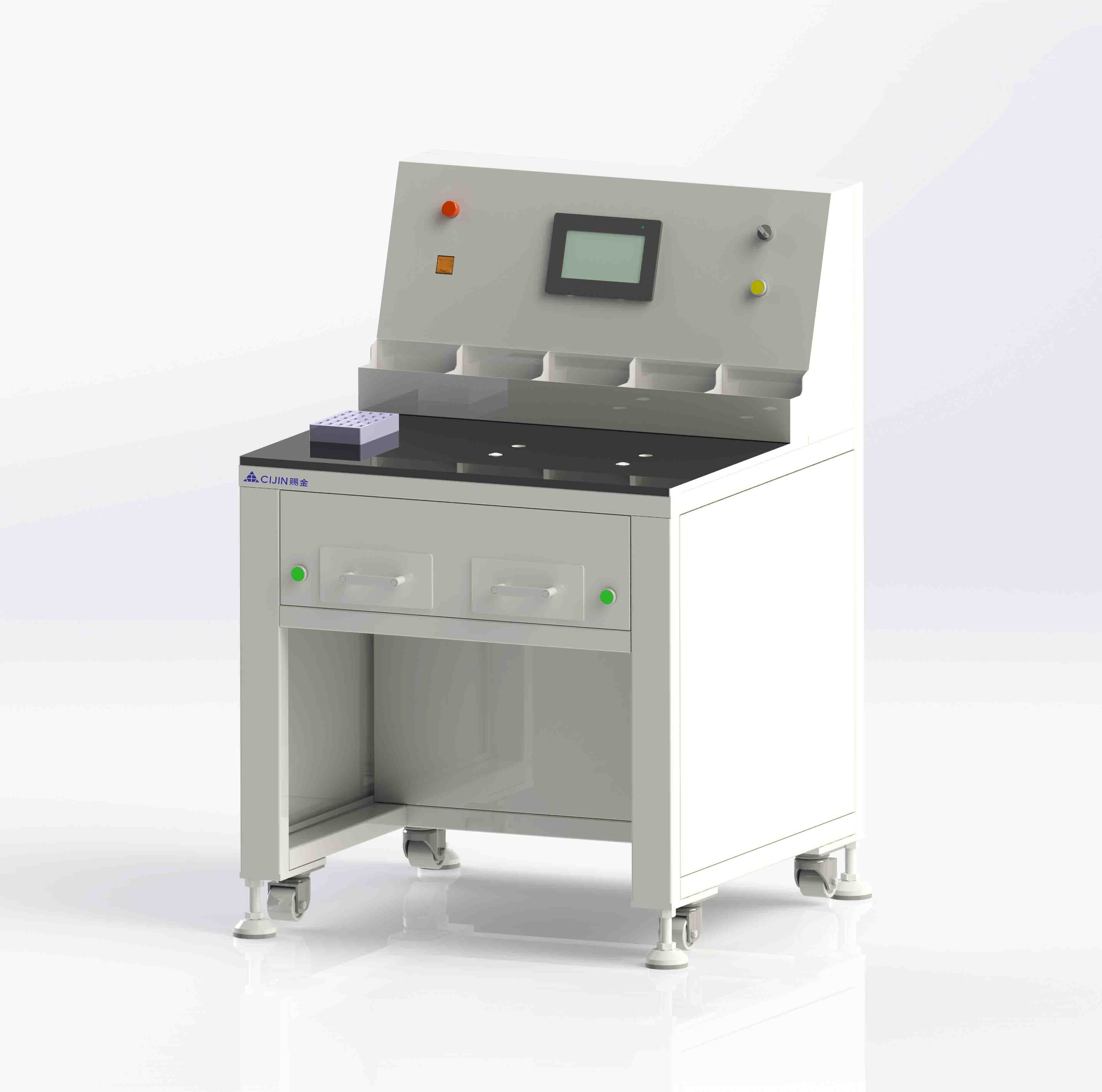

UV rapid curing machine
--CJ-FUV-01
|
project |
Main parameters |
|
Device dimensions |
L750mm*W750mm*H1200mm |
|
Equipment weight |
About 120KG |
|
Machine material |
The body adopts cold-rolled plate and marble countertop |
|
Power parameters |
220V 50HZ |
|
point light source |
2 of them |
|
Area light source |
2 of them |
|
Curing 1 |
3-5 seconds |
|
Curing 2 |
Within 3 minutes |
|
vacuum device |
2 sets |
