Automatic grinder CJ-AYM-8D

Automatic grinder CJ-AYM-8D


The automatic grinding machine has the functions of intelligent speed adjustment and precise pressure control, which can adapt to the grinding needs of various materials; High-precision grinding components are used, and the grinding strength is uniform and stable;

Equipped with an intelligent monitoring system, the automatic operation greatly improves the efficiency, reduces the labor cost, and has the advantages of high efficiency, accuracy and stability.



​Product Advantages:

Automatic grinding, simple and convenient operation;

The amount of grinding can be quantified;

It is convenient for grinding the whole row of holes;

It can be filled with more slices to save grinding labor and glue consumption;



​Key parameters:

Alignment method:CCD visual auto-alignment
Grinding accuracy:≤10um
Disc size:8”
Number of grinding discs:4PCS
Grinding disc method:Coarse grinding, fine grinding, precision grinding, polishing

Feeding method:Automatic feeding

Blanking method:Automatic blanking
Single grind:2PCS
Grind the sample:Through Hole (Standard Machine)

Type of application:Through Hole

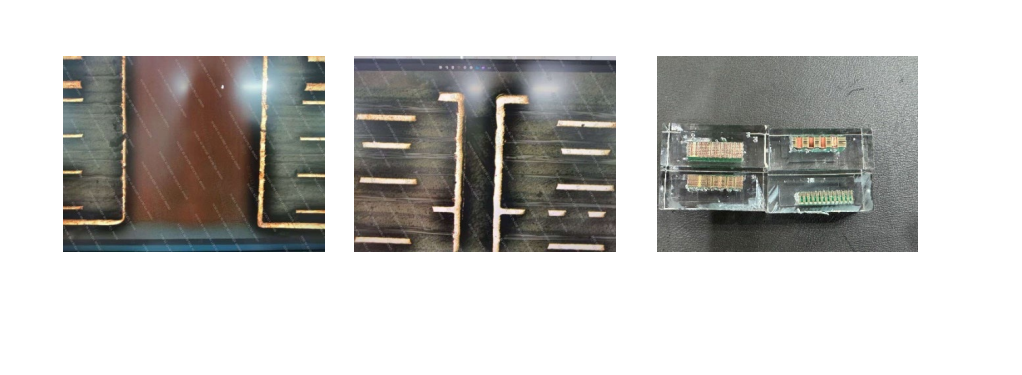

Renderings
